4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

Name: 43inch NV3047driven 480272 TFT highdefinition display bare panel available in nontouch or touchscreen versions
Brand: ORIENTRONIC
Price: 1 USD

Buy cheap 4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions product

Payment Terms : L/C, T/T, D/A, D/P, Western Union, Paypal

Display area : 95.04 (W) x 53.86 (H)

Backlight type : 8 LEDs in series

Delivery Time : 4~6 Working Days

Interface type : RGB888/666/565

Operating Temperature : -20 to 70°C

Viewing Angle : Full viewing angle

Place of Origin : China

Material : TFT LCD

Brand Name : ORIENTRONIC

Size : 4.3-inch IPS display

Supply Ability : Design based on the product

Bare panel dimensions : Without touch (105.42 (W) x 67.07 (H) x 3.0 (T) mm), Resistive touch (105.42 (W) x 67.07 (H) x 4.2 (T) mm), Capacitive touch (105.42 (W) x 67.07 (H) x 4.2 (T) mm)

Storage Temperature : -30 to 80°C

MOQ : First purchase, no purchase quantity limit.

Resolution : 480 (RGB) x 272; display orientation is adjustable, supporting both landscape and portrait modes

Price : Prices are set based on design and quantity.

Control chip : NV3047

Supply Voltage : 5V (default 5V; if 3.3V is required, please refer to the specifications for modification)

Packaging Details : Prices are set based on design and quantity.

Touch type : Three options available: no touch, resistive touch, capacitive touch (5-point touch)

Current : 30mA

Contact Now

4.3-inch color TFT screen size

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

4.3-inch Non-Touch Bare Panel Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

4.3-inch Resistive Touch Bare Panel Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

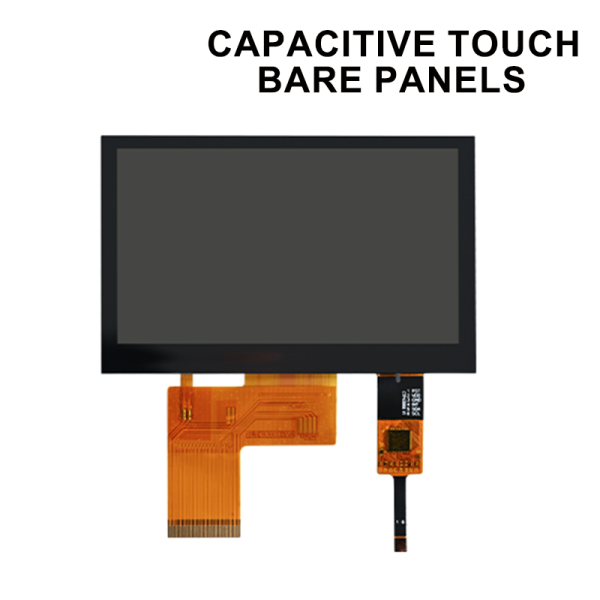

4.3-inch Capacitive Touch Bare Panel Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

4.3-inch bare display interface definition

Item No	Bare Screen (Non-Touch)	Resistive Touch Bare Screen	Capacitive Touch Bare Screen Display Interface	Capacitive Touch Bare Screen Touch Interface
1	LED-	LED-	LED-	Pin1-RST
2	LED+	LED+	LED+	Pin2-VCC
3	GND	GND	GND	Pin3-GND
4	VDD	VDD	VDD	Pin4-INT
5-12	R0-R7	RO-R7	R0-R7	Pin5-SDA
13-20	G0-G7	G0-G7	G0-G7	Pin6-SCL
21-28	B0-B7	B0-B7	B0-B7
29	GND	GND	GND
30	DCLK	DCLK	DCLK
31	DISP	DISP	DISP
32	HSYNC	HSYNC	HSYNC
33	VSYNC	VSYNC	VSYNC
34	DE	DE	DE
35	NC	NC	CN
36	GND	GND	GND
37	NC	X1(XR)	NC
38	NC	Y1(YD)	NC
39	NC	X2(XL)	NC
40	NC	Y2(YU)	NC
